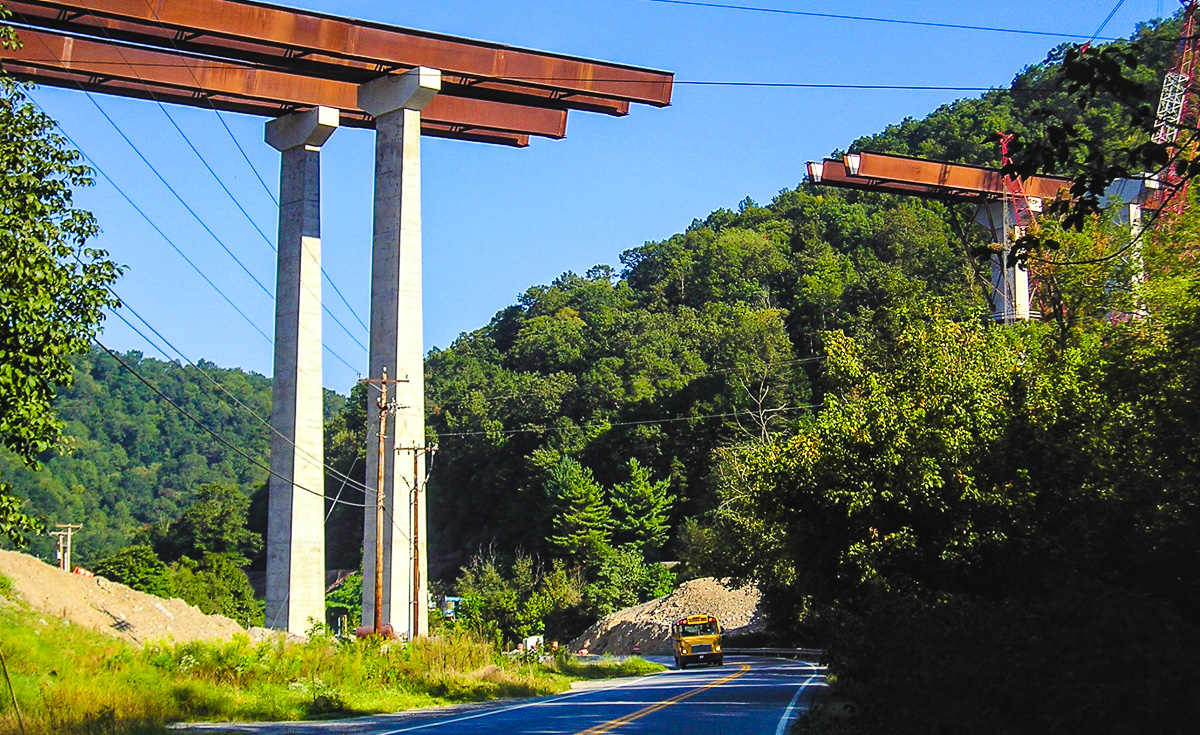

Raccoon Creek Bridge
Prize Bridge Information
- Year Awarded: 2007
- Year Completed: 2006
- Location: Pike County, KY
- Award Class: Long Span
- Designer/EOR: Palmer Engineering
- Fabricator: High Steel Structures
- Owner: Kentucky Transportation Cabinet
- General Contractor: Bush & Burchett
- Detailer: Tensor Engineering
Structure Information

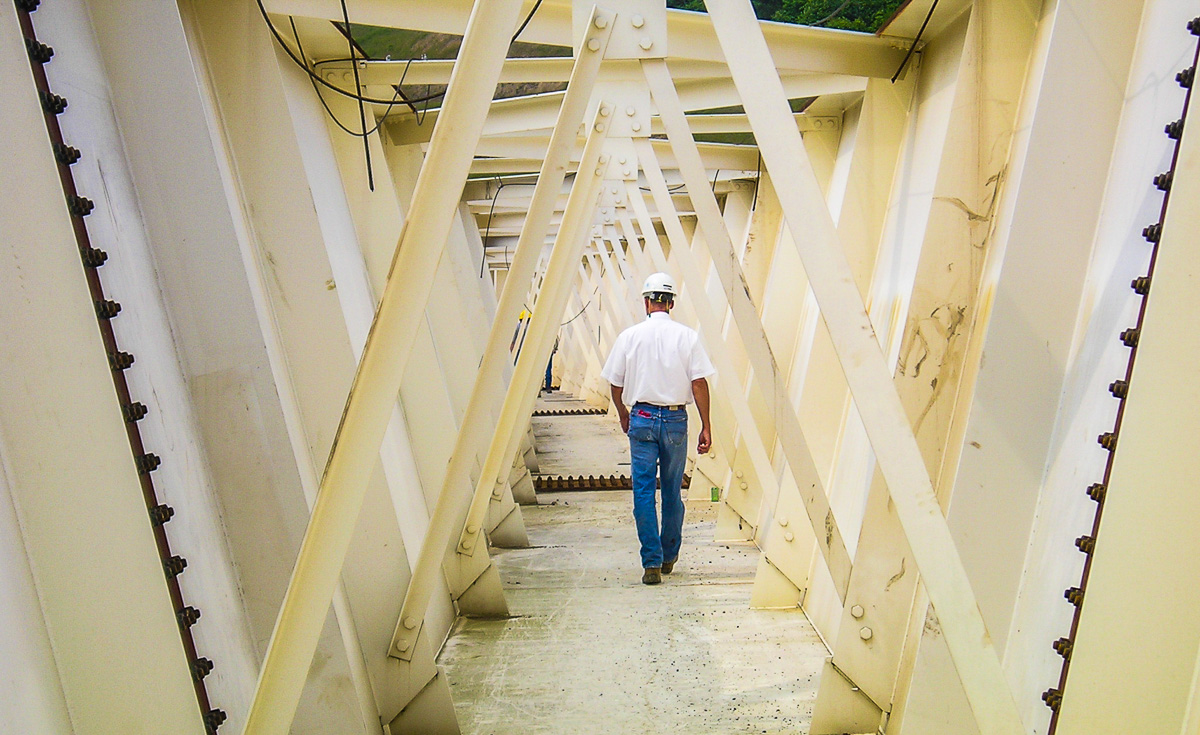

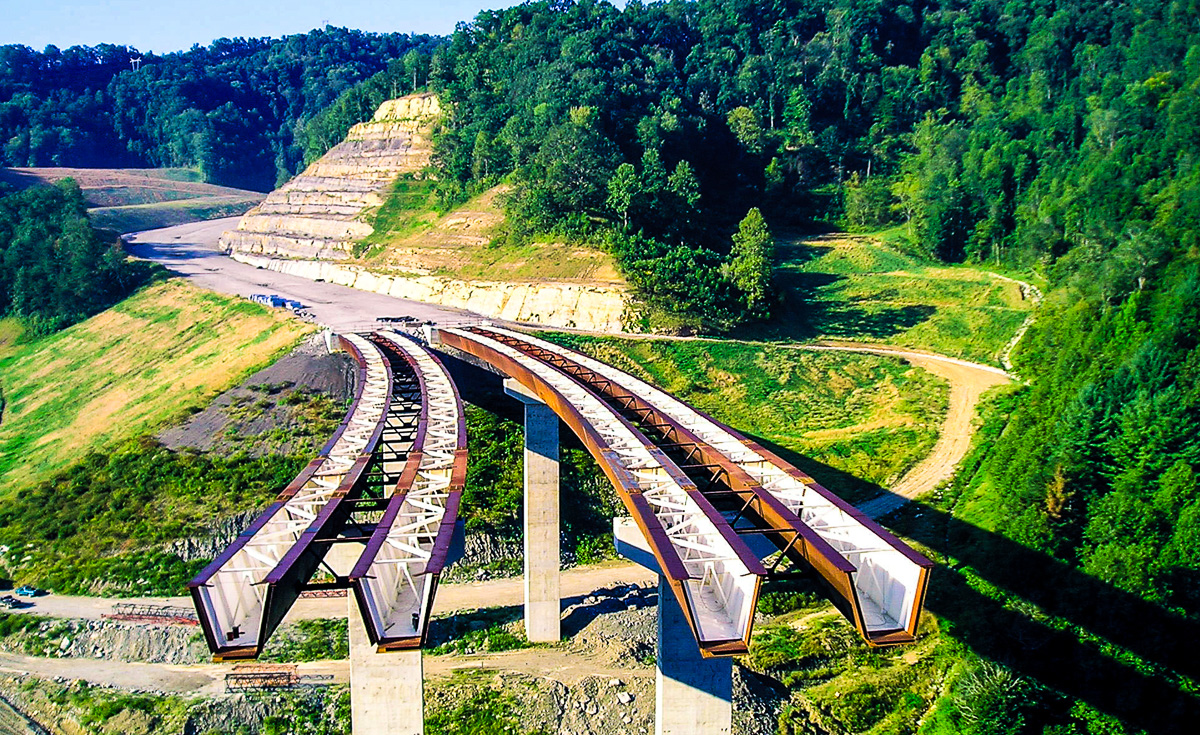

- Structure Type: Tub Girder
- Coating System: Weathering Steel
- Span Length (ft): 285- 353- 380- 247 for northbound and 285- 360- 373- 247 for southbound.

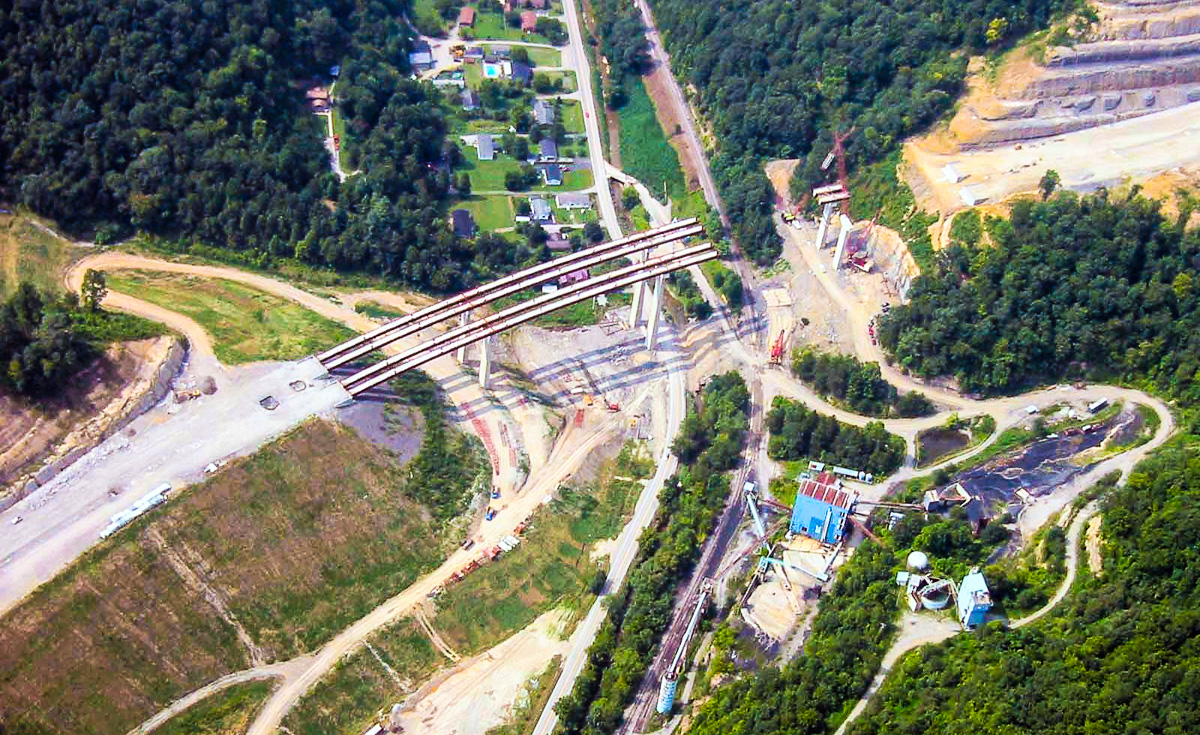

- Structure Length (ft): 1275 overall (twin bridges)
- Average Deck Width (ft): 45
- Steel Weight/Deck Area (lb/ft²): 82
- Amount of Steel (tons): 4720
- Cost: $20.394 million
