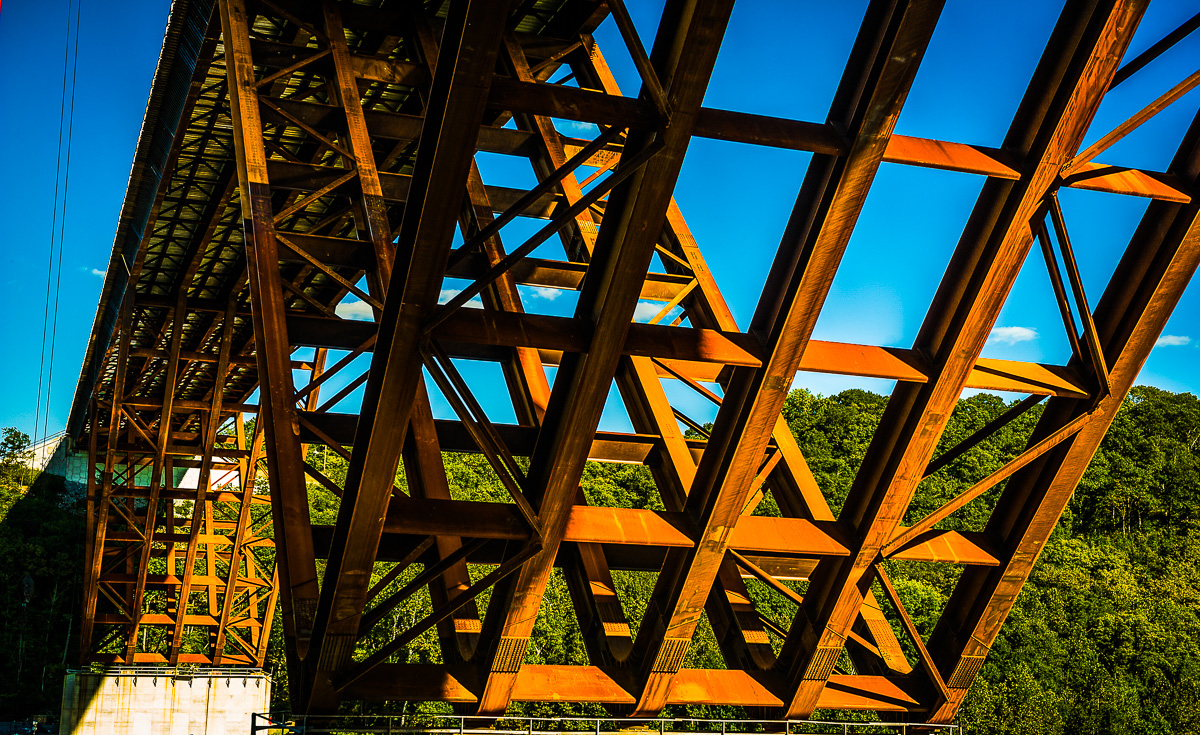

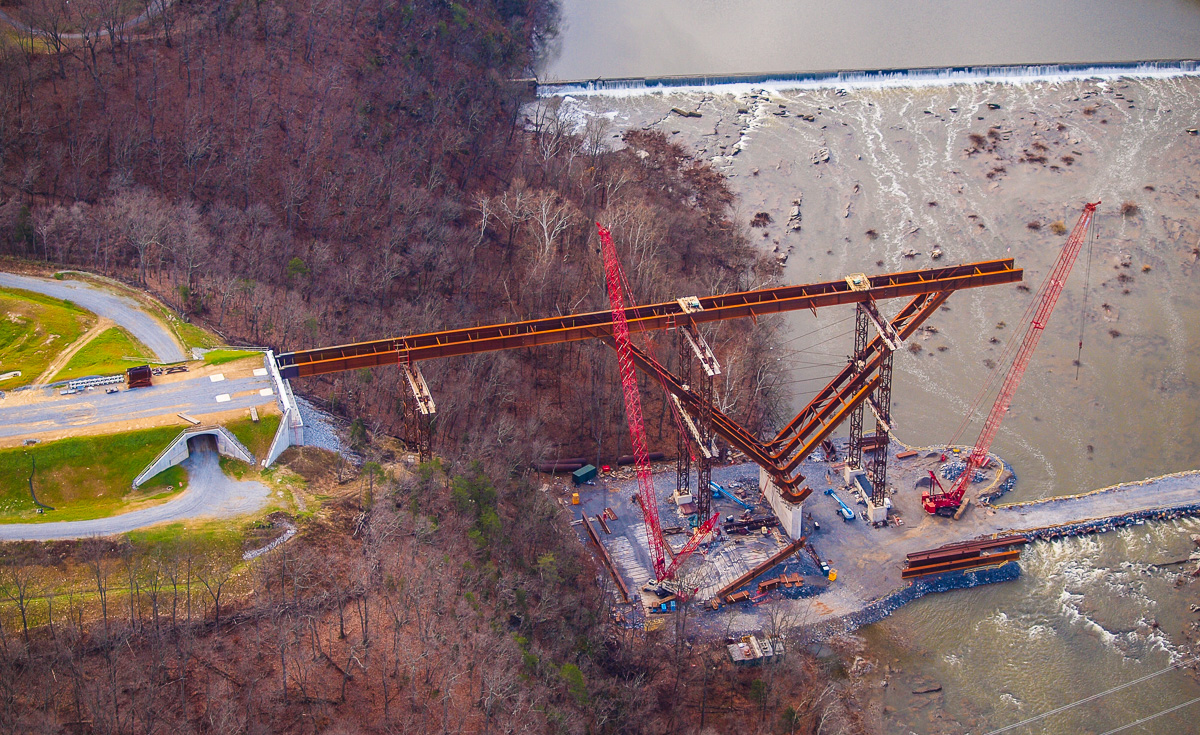

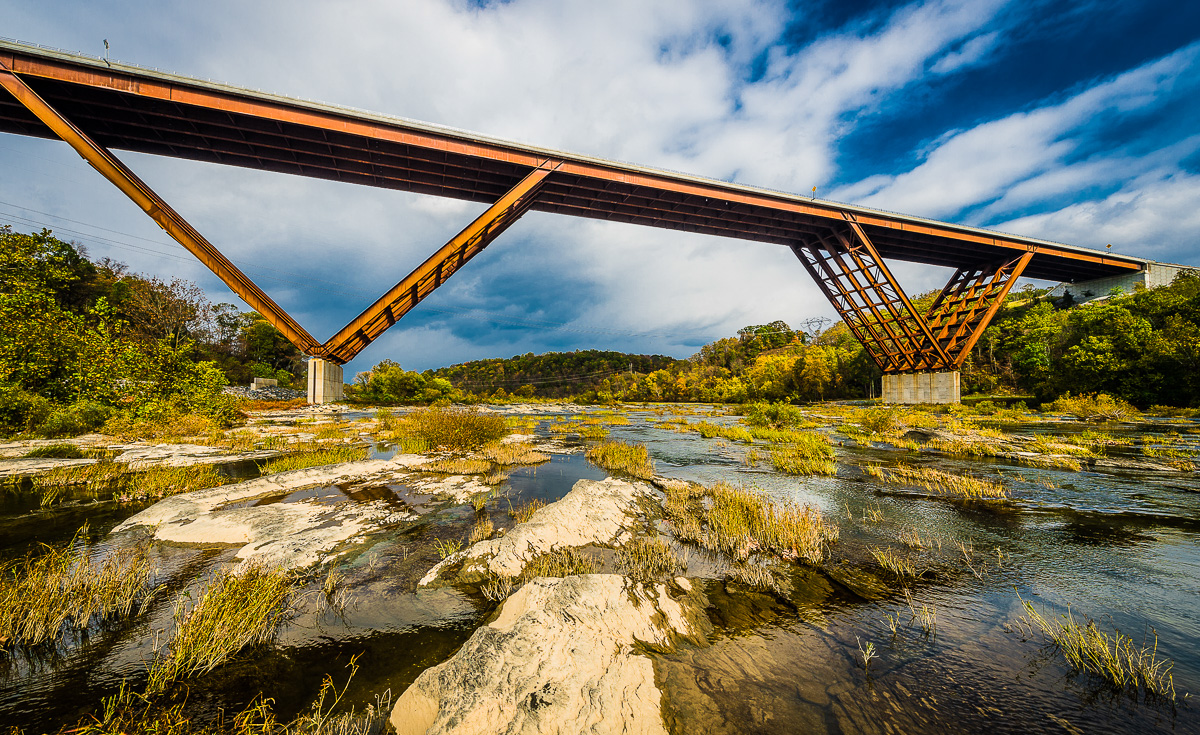

Shenandoah River Bridge Delta Frame

Prize Bridge Information

  • Year Awarded: 2014
  • Year Completed: 2012
  • Location: Jefferson County, WV
  • Award Class: Major Span
  • Designer/EOR: HDR Engineering Inc
  • Fabricator: Veritas Steel
  • Owner: West Virginia DOT
  • General Contractor: Trumball Corporation
  • Detailer: Tensor Engineering

Structure Information

  • Coating System: Weathering Steel
  • Span Length (ft): 400/600/400
  • Structure Length (ft): 1400
  • Average Deck Width (ft): 84.5
  • Steel Weight/Deck Area (lb/ft²): 110
  • Amount of Steel (tons): 6325
  • Cost: $39.9 million
