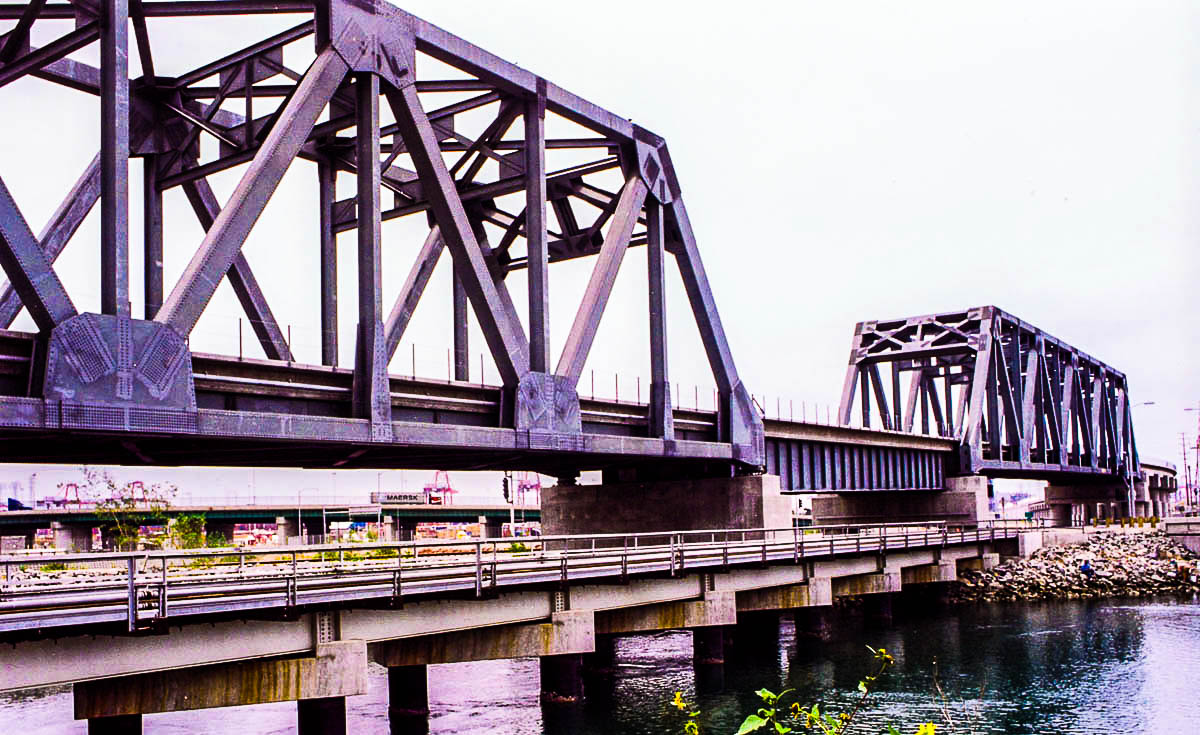

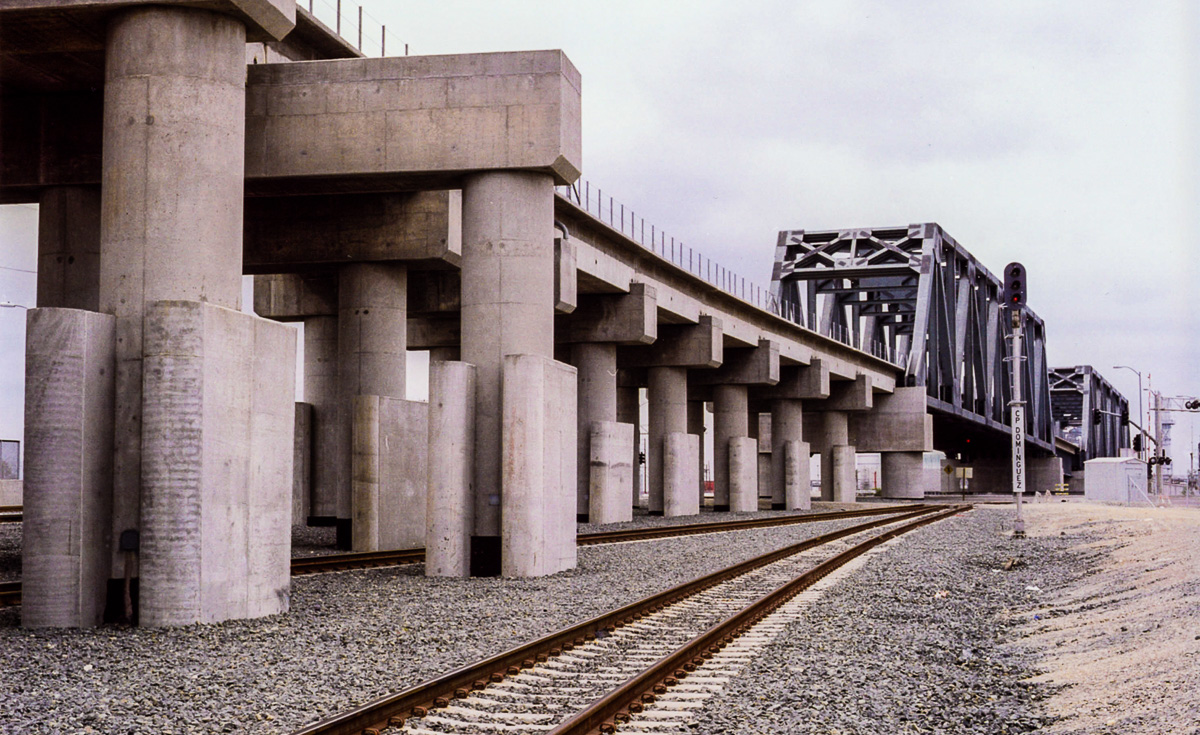

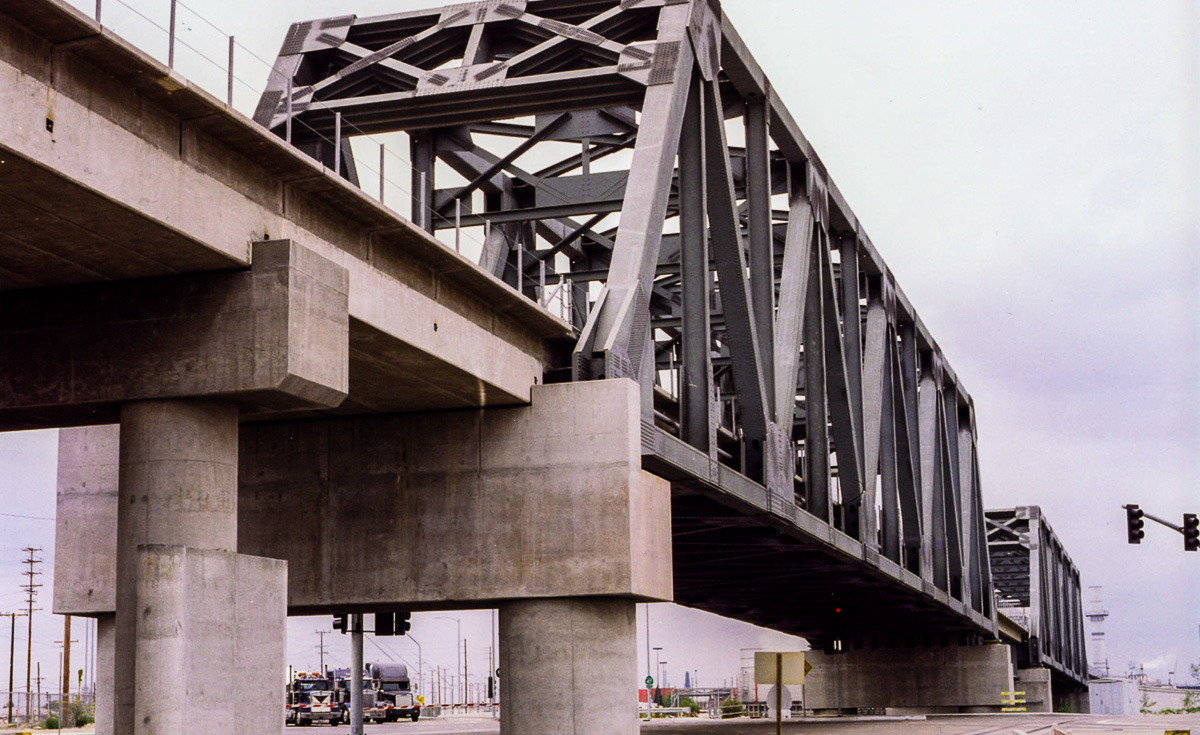

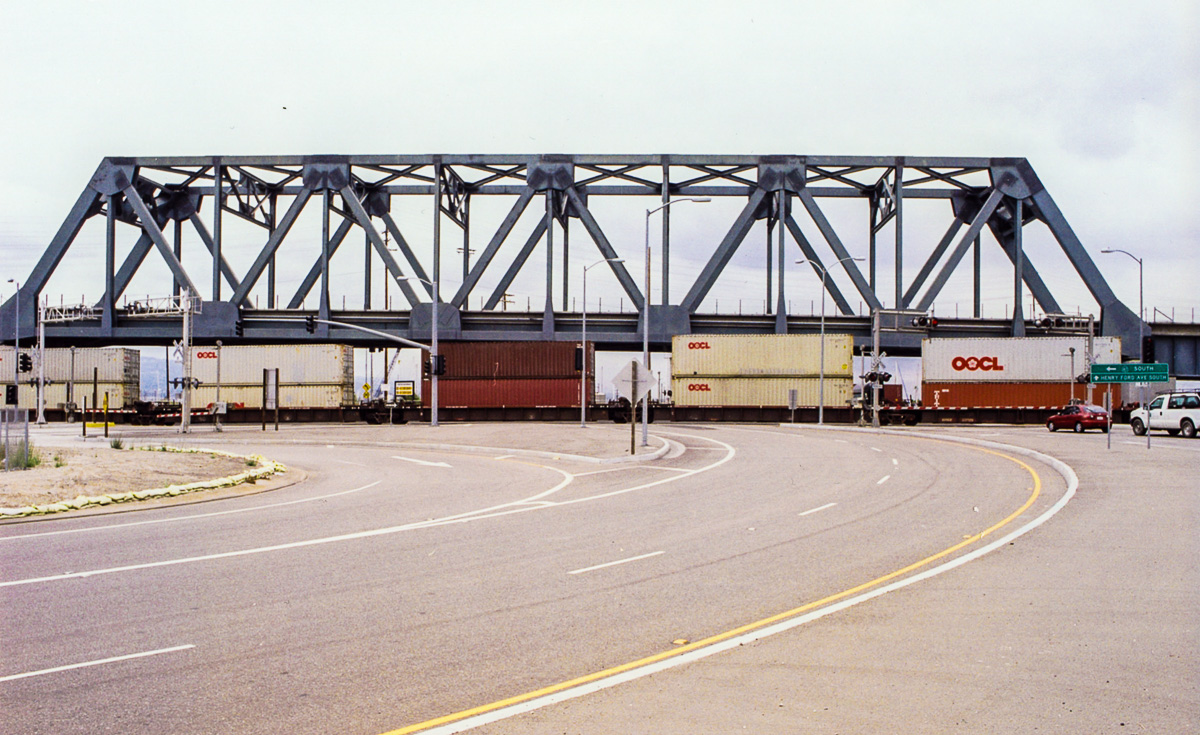

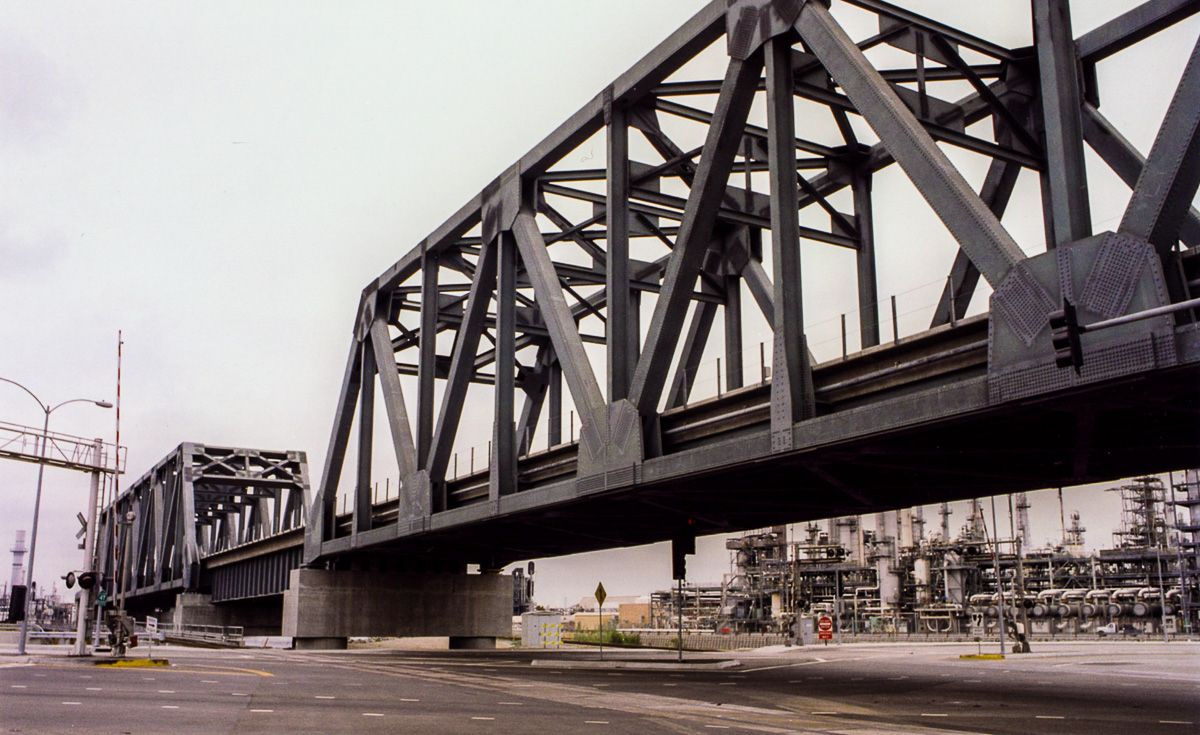

Henry Ford Grade Separation
Prize Bridge Information
- Year Awarded: 2003
- Year Completed: 2003
- Location: Wilmington, CA
- Designer/EOR: HNTB Corporation
- Fabricator: Samsung Heavy Industries Co
- Owner: Alameda Corridor Transportation Authority
- General Contractor: Shimmick Construction Company Inc.
- Detailer: Samsung Heavy Industries Co
Structure Information
- Structure Type: Truss
- Coating System: Paint
- Span Length (ft): 39m/90m/39m/90m
- Structure Length (ft): 695m
- Average Deck Width (ft): 10.6m
- Steel Weight/Deck Area (lb/ft²): 522kg/sm
- Amount of Steel (tons): 4000
- Cost: $90 million
