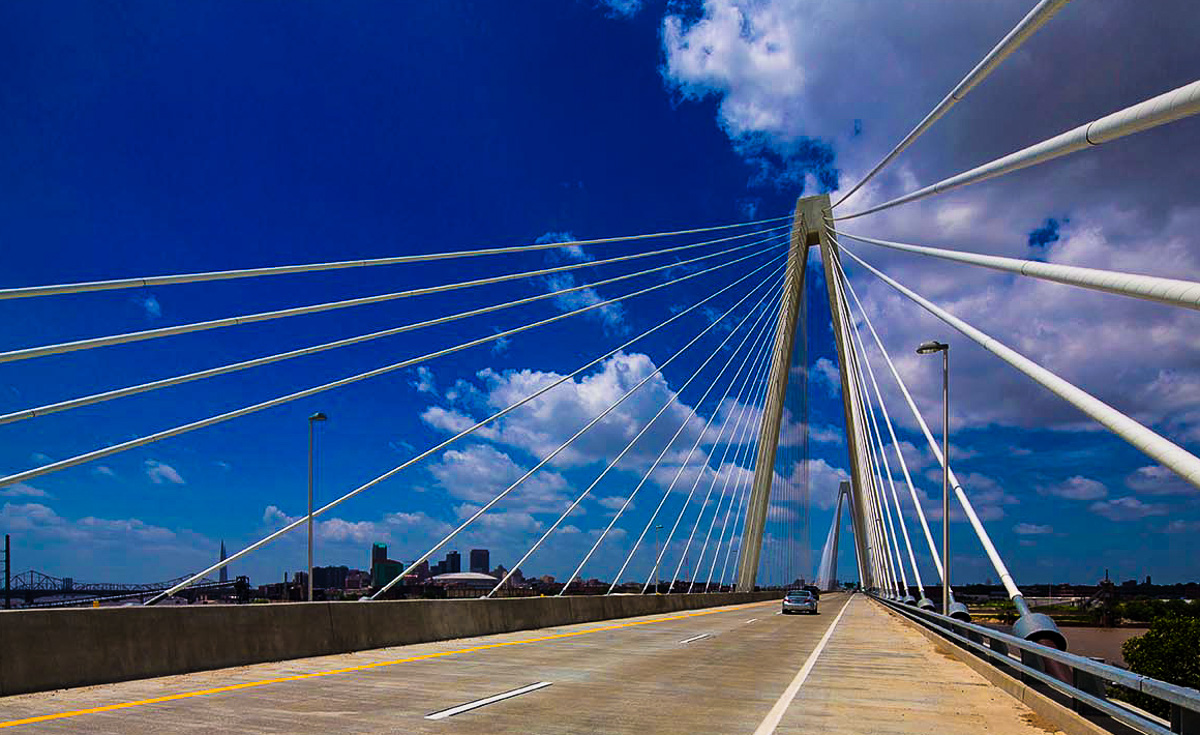

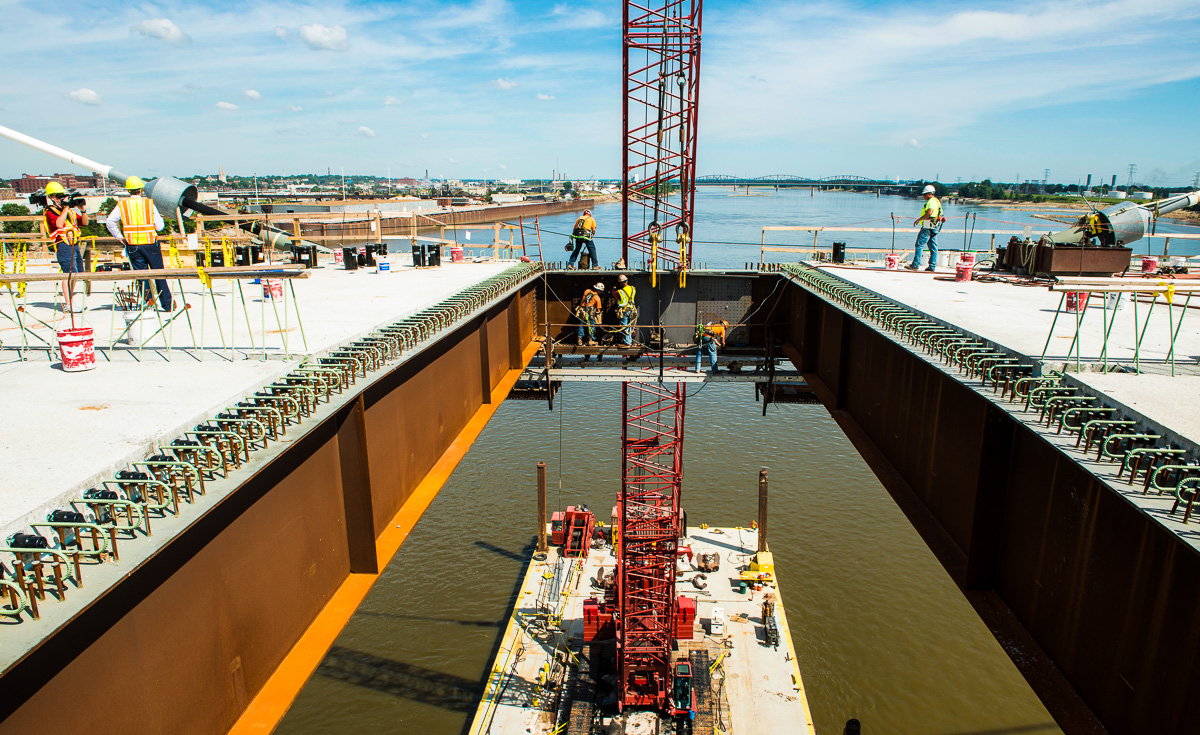

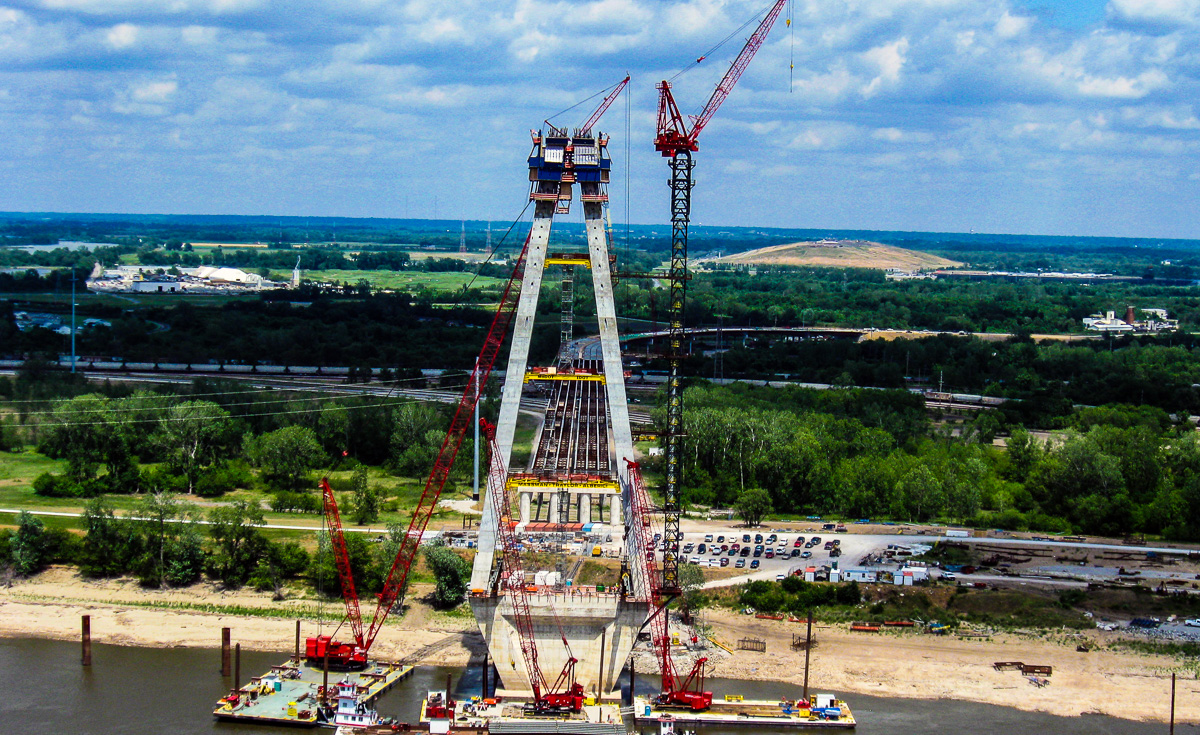

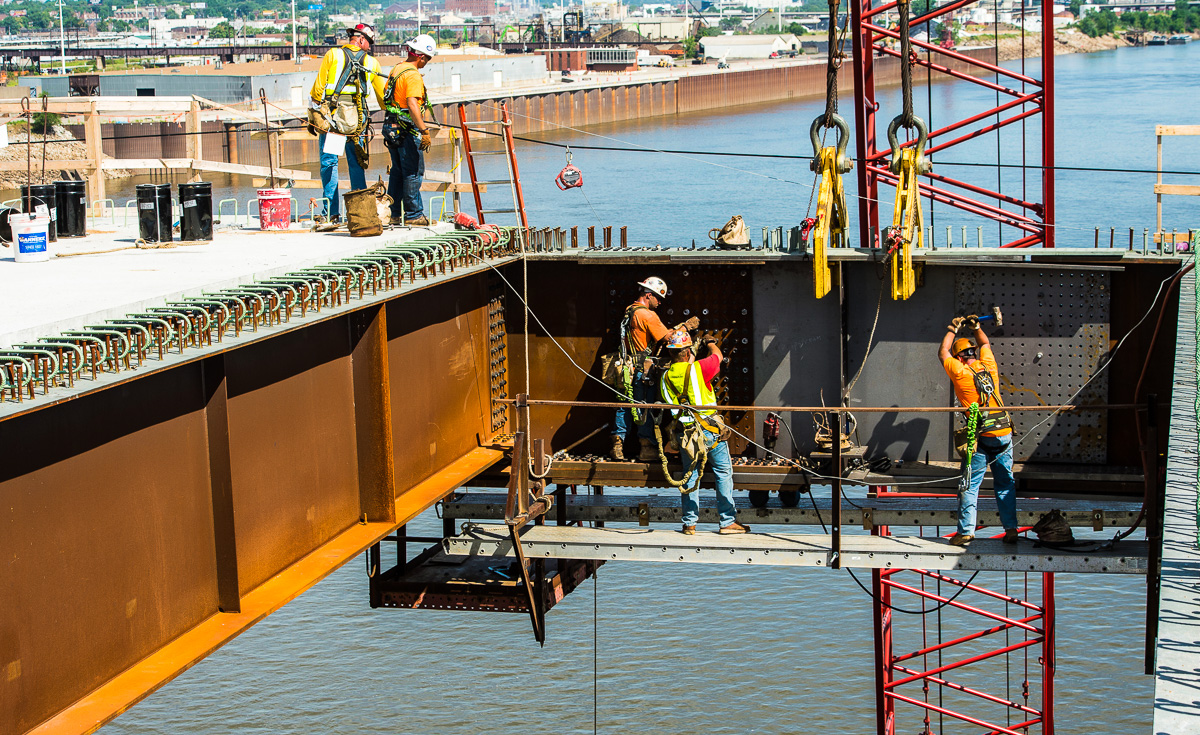

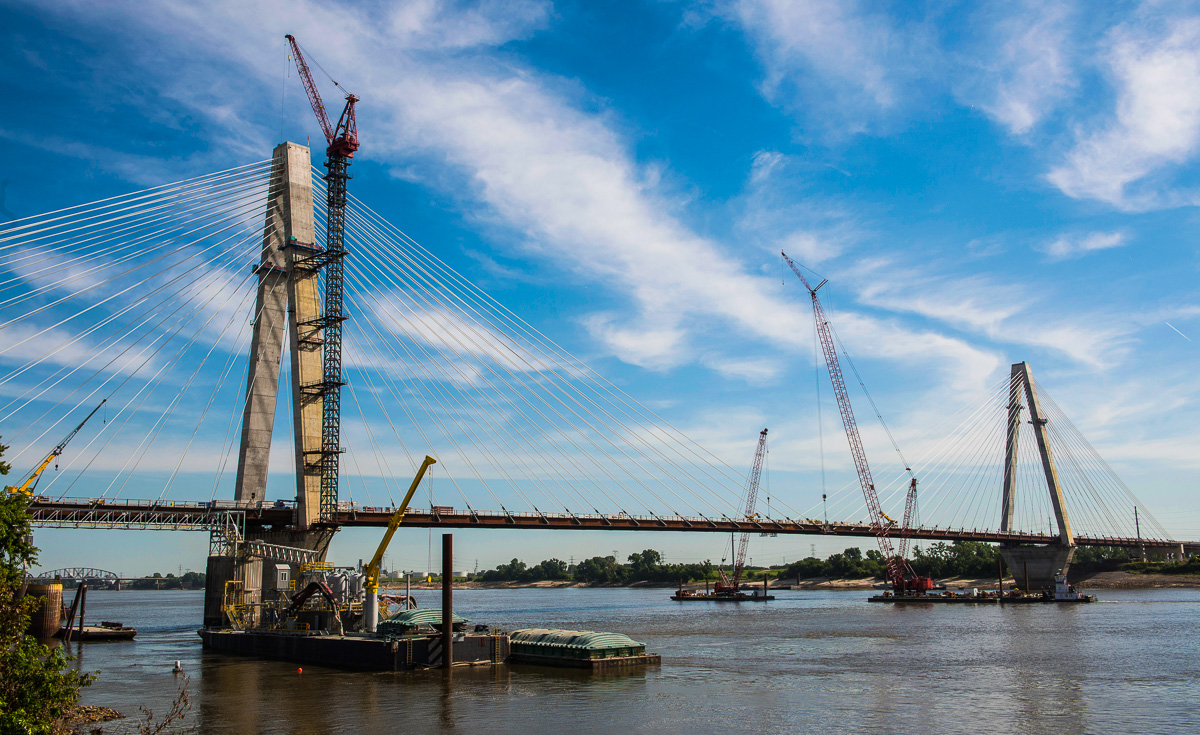

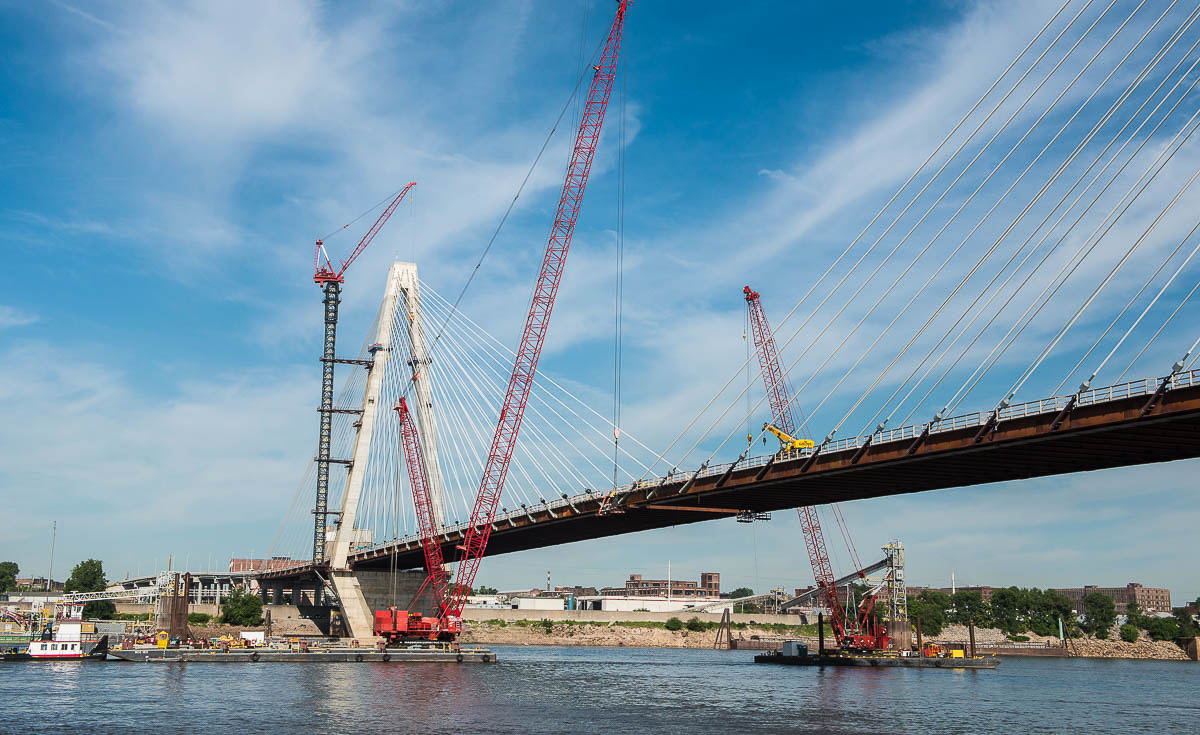

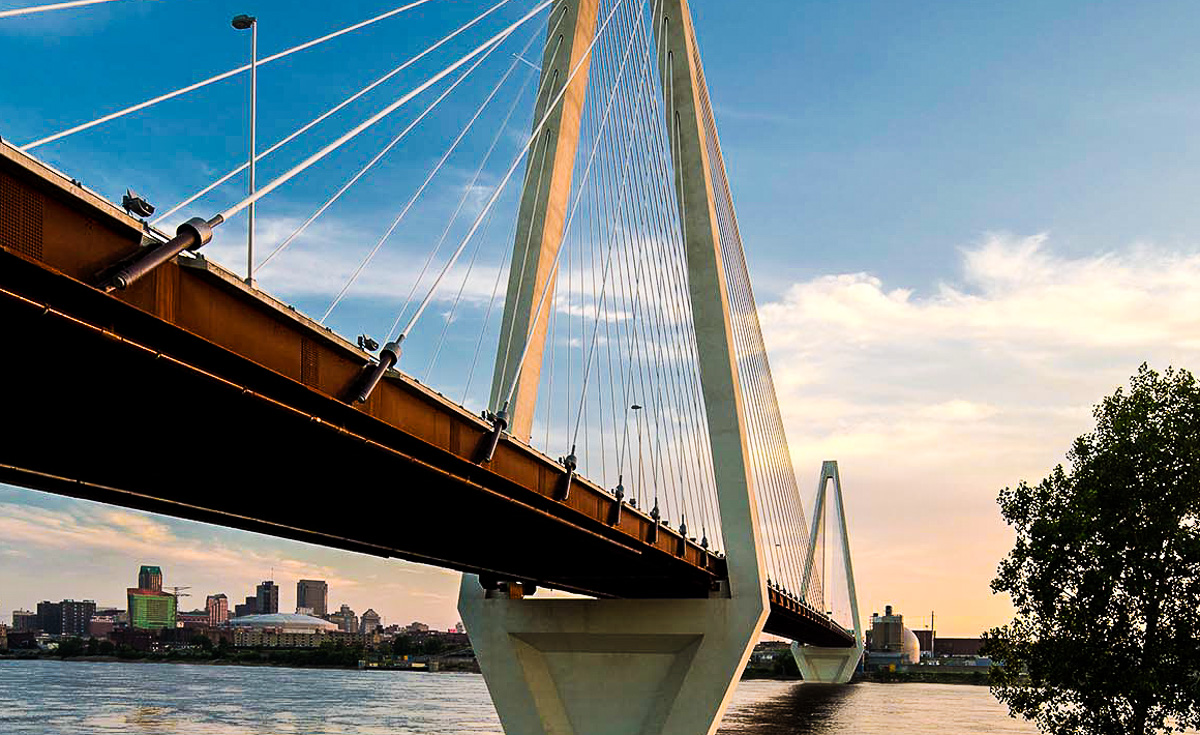

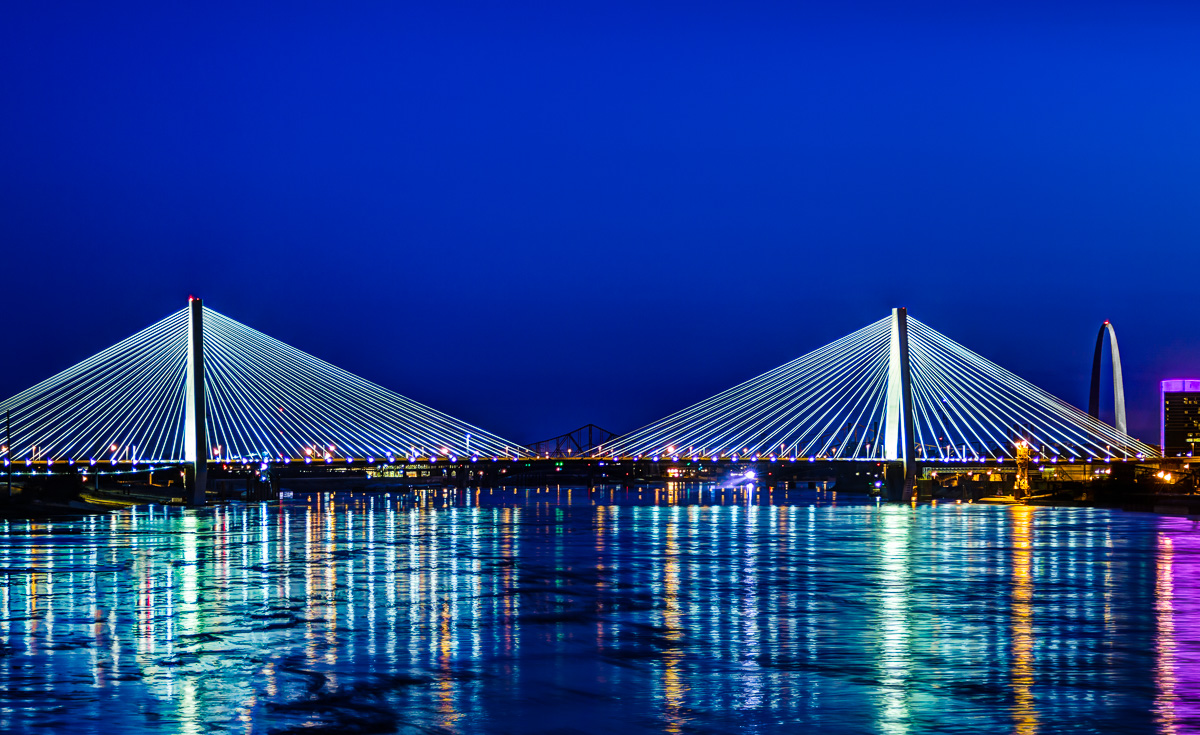

Stan Musial Veterans Memorial

Prize Bridge Information

  • Year Awarded: 2016
  • Year Completed: 2014
  • Location: St. Louis, MO
  • Award Class: Major Span
  • Designer/EOR: HNTB
  • Fabricator: W&W AFCO Steel
  • Owner: Missouri DOT
  • General Contractor: MTA Joint Venture
  • Detailer: Tensor Engineering

Structure Information

  • Structure Type: Cable Stayed
  • Coating System: Weathering Steel
  • Span Length (ft): 635.75/1500/637.75
  • Structure Length (ft): 2772
  • Average Deck Width (ft): 94
  • Steel Weight/Deck Area (lb/ft²): 56.5
  • Amount of Steel (tons): 7357
  • Cost: $230 million
