Corrosion Protection and Durability Resources

There are several proven ways to protect steel bridges from corrosion, and no single solution is best for all circumstances.

The first consideration when selecting one of these techniques is, of course, a bridge’s anticipated exposure to corrosive elements over its lifetime. In addition, teams must consider initial and life-cycle costs, fabrication, productivity, and long-term performance and maintenance when choosing a corrosion protection approach for a given bridge.

General resources:



Some corrosion protection options:



Uncoated weathering steel (UWS) is designed to form a stable patina that protects the structural integrity of the member. Uncoated weathering steel is a widely used corrosion protection system today and performs well if detailed properly and used in the proper location and environment.

For additional information, please refer to:

    • Uncoated Weathering Steel Reference Guide: If speed is what you're after, then uncoated weathering steel (UWS) is your best choice! UWS doesn't require any applied coating--that means no time spent literally watching paint dry. NSBA's new Uncoated Weathering Steel Reference Guide is your go-to resource for using UWS in a variety of bridges in a diverse mix of environments.

    • Section 3.3 (p 19) of Volume 19 of the NSBA Steel Bridge Design Handbook describes UWS.

    • How has WS performed historically?

      • Section 4.1.1 (p 23) of Volume 19 of the NSBA Steel Bridge Design Handbook

      • Connecticut Department of Transportation Study of the Corrosion Performance of Weathering Steel Bridges (May 2021): Uncoated weathering steel has been used in Connecticut for over 50 years. These structures often have both long-term and short-term cost effectiveness as they do not require initial painting, nor is repainting needed throughout the service life. This report reviews the current state of practice for the implementation of weathering steel bridges in the state of Connecticut followed by a review of a large group of weathering steel bridges in the state.

A note about tunnel-like conditions:


One-coat inorganic zinc (IOZ) is a relatively thin silicate coating that has performed well in marine atmospheric conditions.

  • SIOZ as the sole durability system is gaining popularity. NSBA conducted a synthesis study with Modjeski and Masters, and this system is showing promising results. Additional guidance is forthcoming, but the report Single Coat Inorganic Zinc Protection for Steel Bridges summarizes the results of the synthesis study.

  • The Washington State DOT constructed two bridges in the early 2000s with only IOZ primer; an organic zinc primer was also applied to bolted connections in the field. The IOZ primer on both bridges are performing well and the bolts/connections are also in good condition.

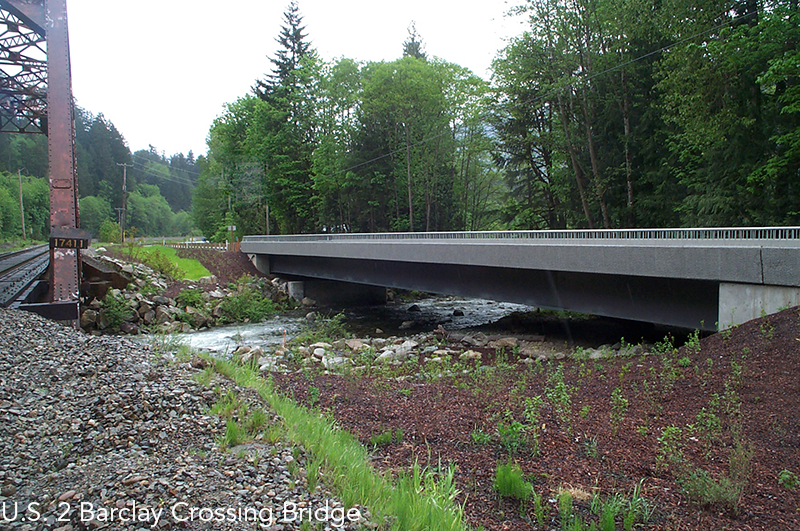

    • US2 Barclay: 50 miles east of Everett, WA.

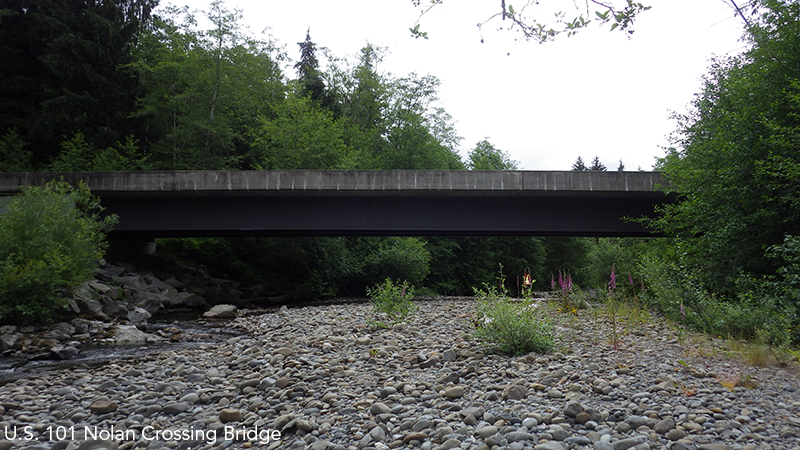

    • Nolan Creek: 21 miles south of Forks, WA.




Two-coat paint systems consist of a zinc-rich primer followed by a polyaspartic, polysiloxane, or acrylic finish coat.


Three-coat paint systems are a common coating system used to protect steel bridges  Traditionally, these systems consist of a zinc-rich primer followed by an epoxy mid-coat and a polyurethane top coat. Sometimes these systems also use a clear coat on fascia girders for enhanced resistance to ultraviolet light in southern latitudes.


Metallizing/thermal spray coatings (TSC) involve a metal coating that is applied to a substrate, like steel. The most common coating choices for bridge steel are pure zinc, pure aluminum, or an alloy of 85% zinc and 15% aluminum.


In hot-dipped galvanizing (HDG), steel elements are dipped into molten zinc to create a protective layer.


Stainless structural steel (A709-50CR) generally contains more than 10.5% chromium and is a relatively new steel alloy. The industry continues to develop new alloys that are more cost-effective.

Section 3.4 (p 21) of Volume 19 of the NSBA Steel Bridge Design Handbook summarizes additional corrosion-resistant alloys, such as A709-50CR.
